Rainbow Main Motor E Series
Rainbow motor E

Alternative Views:
Our Price: $315.59


Free Shipping
Product Code: R-PRT-R7816G
Qty:

Description Russian

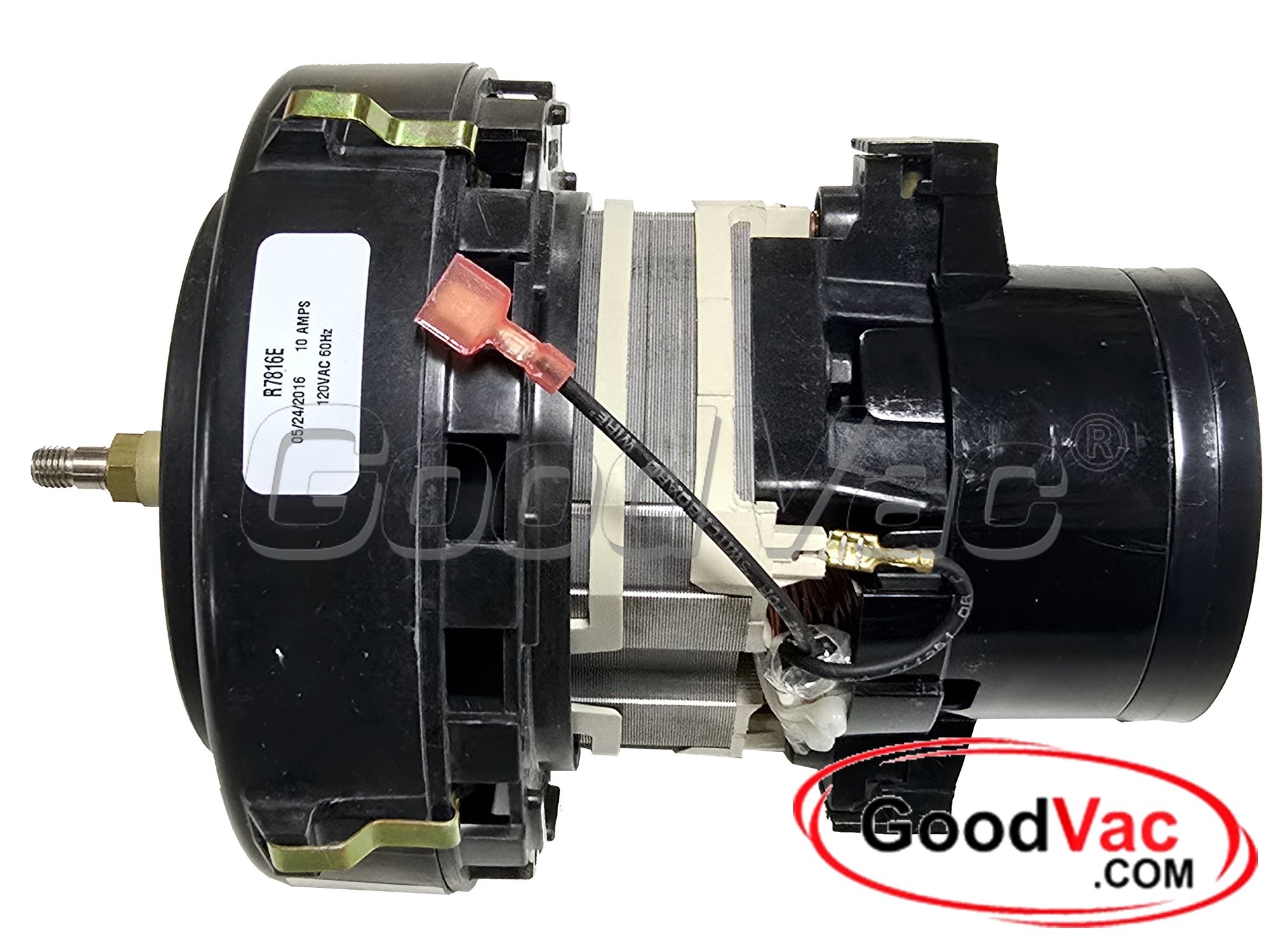

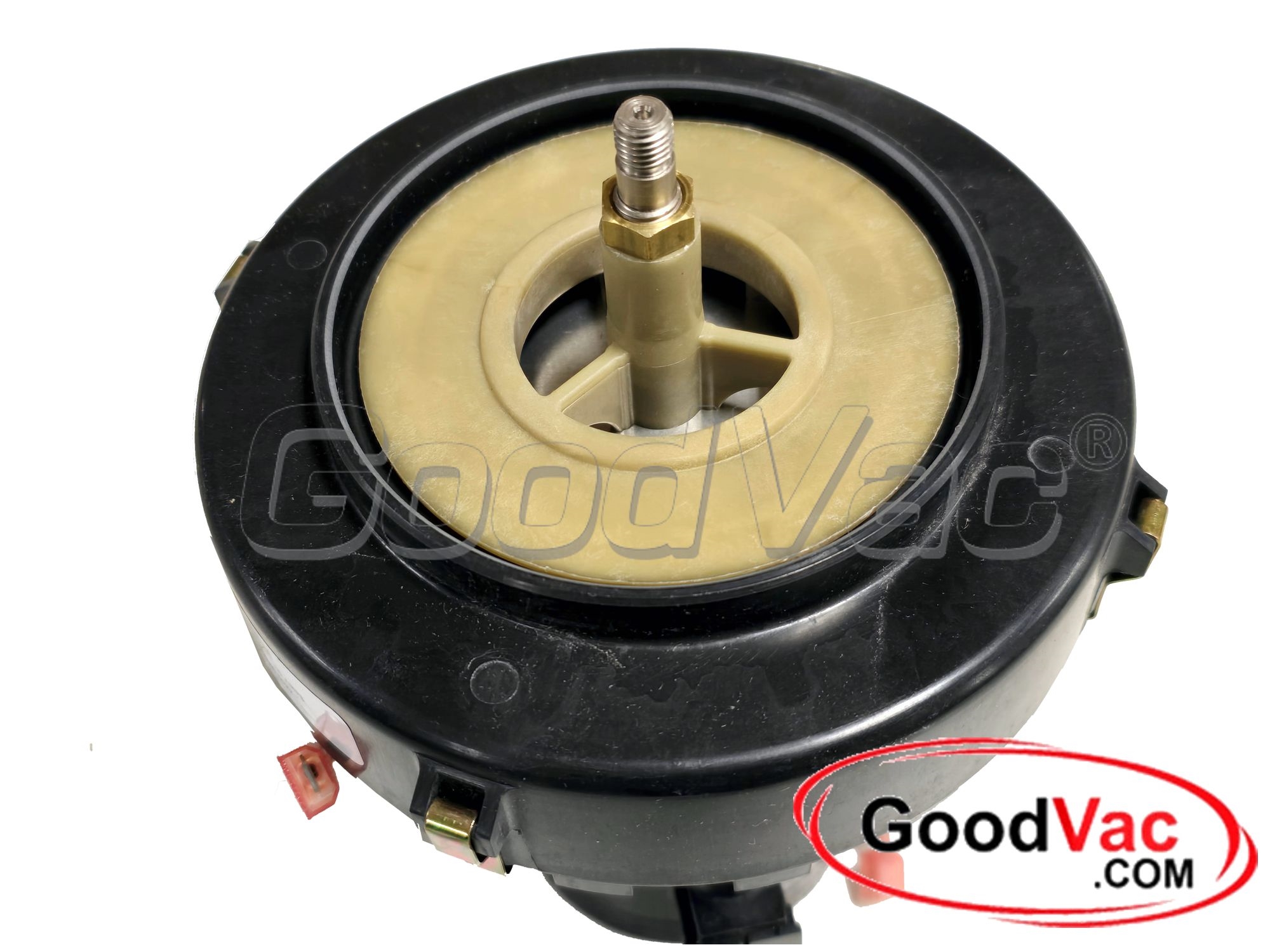

RAINBOW 'E' SERIES MOTOR

This is a brand new main unit motor assembly for e-series (ONE SPEED) Rainbow vacuum

To replace the motor you will need:
  1. Take off clear plastic side panels
  2. Take 4 or 6 screws hidden under the bottom edge of above mentioned panels
  3. Remove the motor unit cap assembly
  4. Remove motor air filter
  5. Remove 4 screws and then metal motor retaining ring
  6. Remove motor
  7. Remove from old motor 4 ring segments that hold rubber motor seal onto the motor.
  8. Remove water pan gasket from the old motor. Try not to damage it as you may have to buy a new one (HERE).
We just posted article with pictures on how to replace the Rainbow e series vacuum cleaner motor. Go HERE for the instructions (skip unnecessary steps)

Work backwards to assemble it back together. Use weatherstripping glue to glue the gasket back. DO NOT put it back onto the water pan the same day - let the glue dry completely

Fits Rainbow Model Numbers:

  • E Series (E2 One Speed / E2 Gold One Speed)

Rexair Rainbow part (spares) catalog # R7816G

WARNING: This product can expose you to chemicals including Di (2-ethylhexyl) Phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

You may be interested
Rainbow Motor Gasket NEW Style
Our Price: $9.79

Add Free Shipping
RAINBOW 'E' WATER PAN/MOTOR MOUNT GASKET
Rainbow Motor Cooling Filter E
Our Price: $24.36

Add Free Shipping
Rainbow E cooling air filter
Weatherstrip Glue 2oz Tube
Our Price: $4.94

Add Free Shipping
Weatherstripping glue 2oz tube
Rainbow Separator E Series
Our Price: $11.51

Add Free Shipping
RAINBOW E SERIES SEPARATOR
Rainbow Main Motor E Series 220V

Add Free Shipping
Rainbow motor E 220V


  1 of 1 people found the following review helpful:

5 of 5 e series motor replacement October 18, 2019
Reviewer: william webb from bloomington, IN United States
works great , much quieter than the 25yo one . easy fix , hope this one lasts at least as long . THANK YOU GOOD VAC

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 motor replacement December 7, 2018
Reviewer: Anonymous Person from Dornsife, PA United States
I just replaced the motor on our e-series unit. Everything went fine but found that I had to put a washer under the nut for the separator. It would not tighten the separator to the motor with out it.

Was this review helpful to you?
